Cats2D geometry plots

New geometry plot types are shown here for the EFG system.

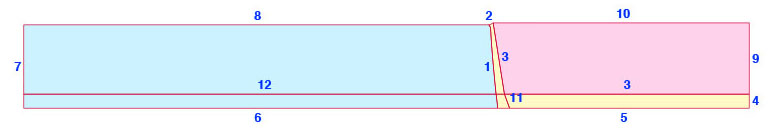

User-defined boundary ID:

boundary id plot

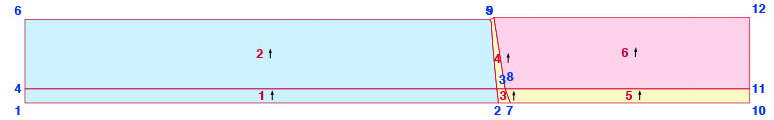

Vertex ID and mesh region ID:

vertex geometry plot

Boundaries at which no-slip boundary conditions have been automatically defined:

auto flow conditions

Boundaries at which rigid shape boundary conditions have been automatically defined:

auto shape conditions

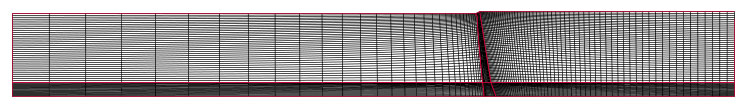

Mesh of quadrilateral finite elements:

mesh image
